VBOX 4 Launched
Experience unparalleled versatility
and precision in brake testing,
ADAS sensor validation, and high
dynamic testing with the all-new
VBOX 4.......
New Design Displays
With all alloy case and Mini versions
available, the all new OLED, Lap
Timer and the Pit Lane Timer offer
a wide range of solutions for your
racing needs...
VBOX Sensors.
With a wide range of sensors including
the new Pedal Effort sensor with
built-in strain gauge amplifier and
the Steering Torque and Angle sensor
we can offer you complete packages
for your testing needs...-
HD2 in the ARC
We are proud to be on board with Molly
Taylor as she and the MAD Garage/Subaru
Australia, Castrol WRX tackles the ARC
Production Cup again in 2024.
Watch out for the YouTube in car
videos captured with the VBOX Video HD2.
GNSS DATA LOGGERS
- - VBOX 4
- - VBOX 4 Dual Antenna
- - VBOX 4 ADAS
- - VBOX Touch
- - VBOX Sigma
- - VBOX Micro
- - Video Data Loggers
GNSS Data Loggers
A great many aspects of vehicle testing can be conducted using a VBOX data logger, from simple performance evaluation through to complex development of the latest ADAS applications. GNSS log rates range from 10Hz to 100Hz, and there are options for single or dual antenna systems - ideal for vehicle dynamics testing. Differential GNSS and RTK solutions allow for high positional accuracy, and inertial measurement integration increases the testing scope further.
TAKE ME TO VBOX GNSS LOGGERS
×
MODULES
- - Inertial Measurement Unit (IMU05)
- - Frequency Input Module (FIM)
- - Analogue Input Module (ADC03)
- - Thermocouple Module (TC8)
- - Mini Input Module (MIM)
- - Micro Input Module (MICIN)
- - Vehicle CAN Interface (CAN02)
- - CAN to Analogue Output Module (DAC01)
- - CAN Speed Interface
- - Strain Gauge Amplifier (SGA02)
Modules
The range of VBOX input modules allows for data capture from test vehicles and increases the functionality of our data loggers. Analogue, frequency, CAN, and thermocouple signals are integrated into GNSS data and a combination of module channels can be recorded simultaneously. Our Inertial Measurement Unit (IMU) module outputs pitch/roll and yaw data as well as providing a smoothed GNSS velocity signal when used in unfavourable conditions.
TAKE ME TO VBOX MODULES ×ANALYSIS SOFTWARE
- - VBOX Test Suite (VBTS)
- - VBOX File Processor
- - ADAS
- - Pass-by Noise
- - Brake Test
- - Tyre Testing
- - Coastdown
- - Performance Test
VBOX Test Suite Plug-ins
Software
All VBOX GNSS data loggers ship with VBOX Test Suite, a highly flexible and very powerful software package designed specifically for vehicle testing. Included are free modules fro many standardised tests and specialist ADAS applications such as, NCAP, aquaplane, coastdown, brake testing, and centreline deviation.
TAKE ME TO SOFTWARE ×SPEED SENSORS
SPEED SENSORS
With update rates of 25 Hz and 100 Hz, VBOX Speed Sensors provide a high accuracy speed signal to augment your testing setup.
TAKE ME TO SPEED SENSORS ×RTK/TELEMETRY SYSTEMS

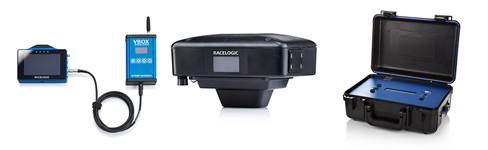

VBOX Telemetry
Wireless communication between VBOX products often forms an essential part of our customer’s testing requirements for transmitting DGNSS correction messages to a roving VBOX unit to obtain high positional accuracy; or for the exchange of GNSS measurements from one VBOX to another in open-road testing during the development of a vehicle’s safety systems.
TAKE ME TO VBOX TELEMETRY SYSTEMS ×INDOOR POSITIONING
Indoor Positioning
The VBOX Indoor Positioning System (VIPS) by RACELOGIC is a highly accurate way of measuring speed, position and attitude (pitch/roll/yaw) in areas where GNSS is not available. The VBOX Precision Ranging System enables you to accurately measure the distance between two objects, in any environment. It is suitable for any application where you need to calculate a separation distance and does not rely on GNSS, which means the system can also be used indoors.
TAKE ME TO INDOOR POSITIONING ×
INERTIAL NAVIGATION SYSTEMS
VBOX 3iS
VBOX 3is is the industry standard GNSS-aided Inertial Navigation system, offering an efficient solution for high-accuracy ADAS and vehicle dynamics testing – available as the standard VBOX 3iS or the new VBOX 3iSDR.
TAKE ME TO INERTIAL NAVIGATION SYSTEMS ×DISPLAYS
Displays
VBOX displays offer a variety of real time results feedback and unit setup. The advantage of using a display is the speed and convenience of altering test parameters or verifying data during the procedures themselves; sometimes the ability to abort a run, often only possible when in-vehicle viewing of data is available, can greatly reduce the amount of track time required.
TAKE ME TO VBOX DISPLAYS ×ACCESSORIES
- - Triggers and Switches
- - Antennas and Antenna mounts
- - Adapters, Converters and Connectors
- - Cable drawings
VBOX Accessories
We can provide the full spectrum of add-on and replacement products: Load cells, pressure transducers, antennas, batteries, triggers, light barrier kits, mounting arms, switches, cables, and cases.
TAKE ME TO VBOX ACCESSORIES ×VIDEO DATA LOGGERS
Video Loggers
The ability to closely analyse when and where you can improve your performance on track from data synced with video is now widely regarded as the quickest way to go faster. If you are thinking of investing in a video data logger then you cant go past the VBOX Video HD2 HDMI.
TAKE ME TO VIDEO LOGGERS ×
